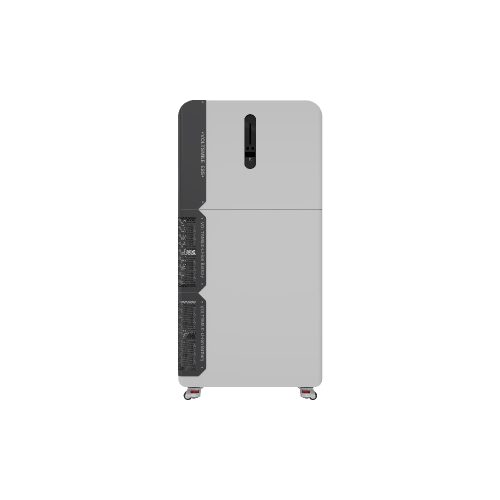

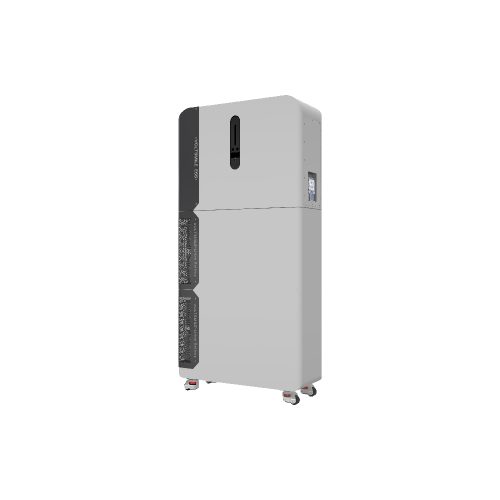

RHS-Na Series
- NA-ion Battery: Utilizes 160Ah, large-capacity, sodium-ion cells.
- WideTemperatureRange: Stable performance from -40°C to 60℃.
- HighCapacityRetention: >90%, Capacityretentionat-20°C.
- Excellent Safety: Lower thermal runaway risk.
- Integrated DC-DC Module: 600V DC-DC module with high conversion efficiency.
| Cell Type | SIB3.0V |
|---|---|
| Cell Capacity | 160Ah |
| Battery Pack Configuration | 1P8S*2 |
| Single Battery Capacity | 7.6kWh |
| Rated Voltage | 600Vdc |
| Voltage Range | 486.7-657Vdc |
| C-rate | ≤1P |
| Operating Temperature Range | -40°C~60°C |
| Relative Humidity | 0~95% RH |
| Altitude | <3500m |
| Ingress Protection (IP) Rating | IP65 |
| Cooling Method | Natural cooling |
| Communication Interface | RS485/CAN/WIFI |
| Certification | IEC62619, UN38.3, CE, ROHS |
