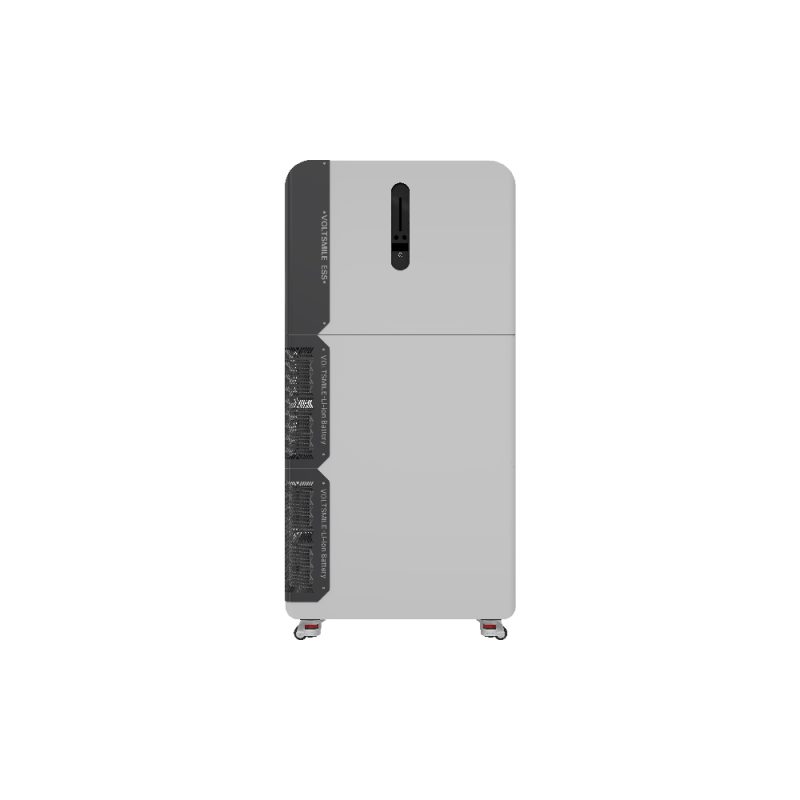

RHS Series
- 314AhLarge-capacity: 314Ah large-Capacity cells+, 600VDC-DCmodulewithhigh, conversion efficiency.
- Easy Installation: Stackable design for excellent, scalability and easy on-site installation.
- Small Footprint: Compact system with a small footprint.
- High Compatibility: High compatibility with mainstream, energy storage inverters.
| Battery Type | LFP3.2V/314Ah |
|---|---|
| Battery Pack Configuration | 16kWh/2P8S |
| Voltage Range | 487.6-687Vdc |
| Maximum PV Input Voltage | 1000V |
| MPPT Operating Voltage Range | 200~950V |
| MPPT Quantity | 2 |
| No.of String Per MPPT | 2/2 |
| Rated Voltage | 230/400V |
| THDI | <3%(Rated Power) |
| Adjustable Power Factor | 0.8 Lagging – 0.8 Leading |
| Relative Humidity | 0~95% RH ，NO Condensation |
| Altitude | ≤2000m |
| Ingress Protection (IP) Rating | IP65 |
| Cooling Method | Natural cooling |
| Communication Interface | RS485/CAN/WIFI |
| Certification | IEC62619, UN38.3, CE, ROHS |
