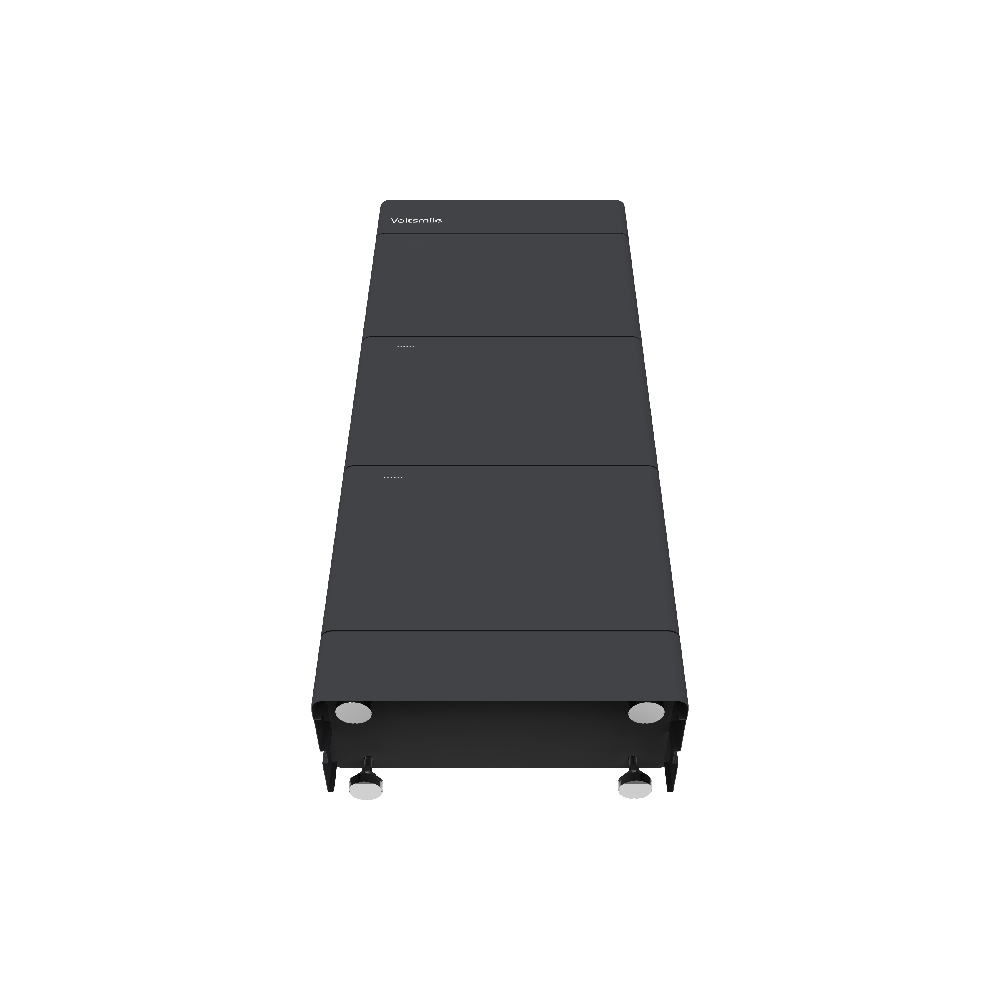

Monolith Stacked LI-ION BATTERY 51.2V 100AH
- Safe & Long-Lasting
LiFePO4 chemistry, 10+ year lifespan, 16-unit parallel support. Certified (IEC62619/UN38.3/CE/ROHS), IP54 rated, operates in -20°C~55°C. - High-Performance
51.2V system, 5.12kWh capacity (4.6kWh usable), 100A charge/discharge, CAN/RS485 comms. - Compact & Durable
43kg, 520×255×330mm, works in 5%~95% humidity and up to 3,500m altitude. - 10-Year Warranty
Industry-leading warranty ensures long-term reliability.
| Battery Chemistry | LiFeP04 |
|---|---|
| Rated Voltage | 51.2Vdc |
| Capacity | 5,120Wh |
| Usable Capacity | 4,608Wh |
| Charging Current | 100A |
| Discharging Current | 100A |
| Communications | CAN / RS485 |
| Number In Parallel | 16 |
| Dimensions | 520 x 255 x 330 (mm) |
| Weight | 43 kg |
| Working Temp | 0°C~50°C |
| Store Temp | -20°C~55°C |
| IP Rating | IP54 |
| Humidity | 5%~95% (RH) |
| Altitude | <3500 M |
| Warranty | 10 Years |
| Designed Life | 10 years+ |
| Certifications | IEC62619 / UN38.3 / CE / ROHS |
