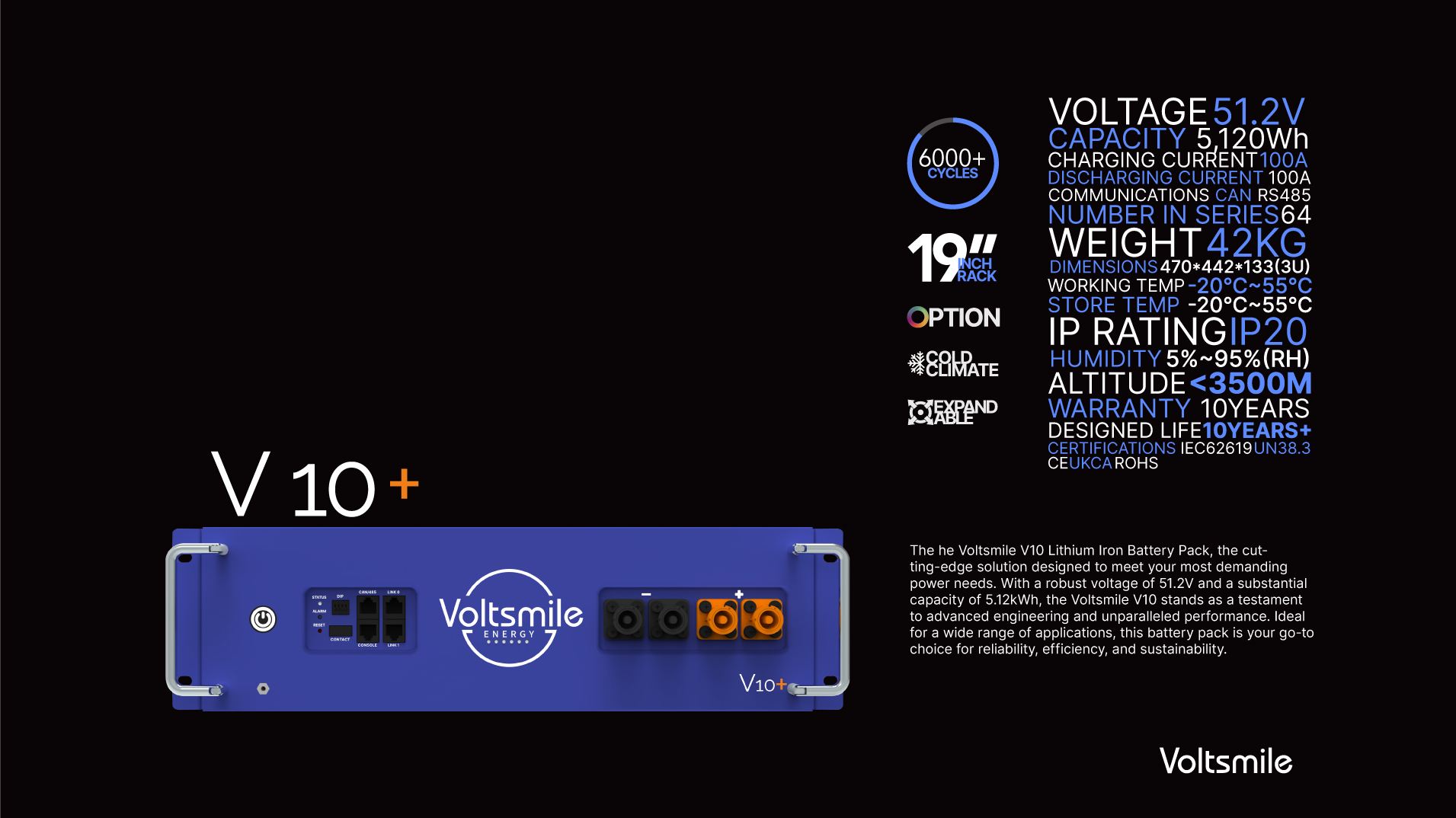

V10+ Rack Mounted LI-ION BATTERY 51.2V 100AH with self-heating module
- High Voltage and Capacity: The Voltsmile V10 features a robust 51.2V voltage and a substantial 5.12kWh capacity, providing reliable power for various applications.
- Cutting-Edge Design: The Voltsmile V10 is crafted with advanced technology, delivering superior performance and efficiency.
- Versatile Functionality: Suitable for a wide range of uses, the Voltsmile V10 is a flexible and adaptable energy storage solution.
- Reliable and Sustainable: The Voltsmile V10 prioritizes reliability and sustainability, offering consistent performance and eco-friendly energy storage.
| Battery Chemistry | LiFeP04 |
|---|---|
| Nominal Voltage | 51.2V |
| Capacity | 5,120Wh |
| Charge Current | 100A |
| Discharge Current | 100A |
| Communications | CAN / RS485 |
| Scalability | Max 63 units in parallel |
| Dimensions | 442 x 470 x 133 mm |
| Weight | 42 kg |
| Working Temp | -20° C~50° C |
| Store Temp | -20° C~55° C |
| IP Rating | IP20 |
| Humidity | 5%~95%(RH) No Condensation |
| Altitude | < 4500 M |
| Designed Life | 10 years+ |
| Warranty | 10 Years |
| Certifications | IEC62619 / UN38.3 / CE/ ROHS |
