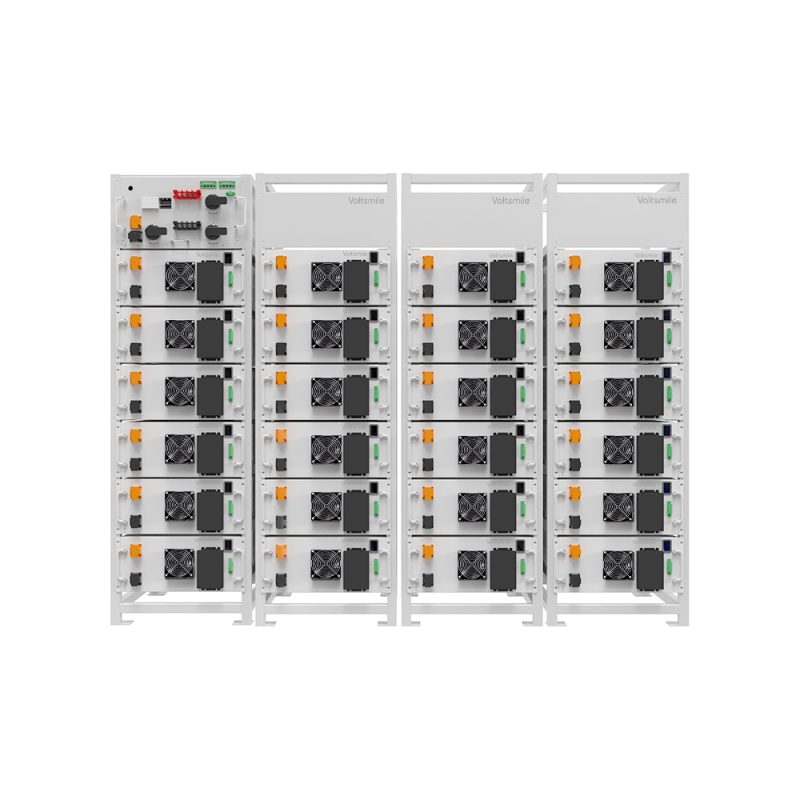

HV20 Series High-voItage Battery System
- Convenient installation: 19-inch embedded standard module, easy for installation and maintenance.
- Safe and reliable: Adopts LiFePO4 battery chemistry with safety, long cycle life, and low self-discharge.
- Flexible configuration: Battery capacity: 7.68 kWh, single cluster 176kWh, scalable to 706.5kWh.Multiple modules can be paralleled for capacity/power expansion.
- Wide Temperature Tolerance: -20°C to 55°C with excellent discharge and cycle performance
| Battery Type | LiFePO4 |
|---|---|
| Nominal Capacity | 46080Wh ~ 138240Wh |
| Max Output power | 35KW ~ 115KW |
| Nominal Voltage | 230.4V ~ 883.2V |
| Recommend Discharge Current | 100A |
| Max.Charge/Discharge Current | 150A |
| Peak Discharge Current | 120A@30s |
| Battery Module Capacity | 200Ah |
| Built-in Circuit Breaker | 220A |
| Charge Efficiency | 99% |
| Cycle Life | ≥6000(25°C+2°C,80%DOD,70%EOL) |
| Communication | CAN2.0, RS485 |
| Status Indicator | HV BOX： LCD |
| Operating Temperature | Charge：0~50°C;Discharge：-20~60°C |
| Storage Temperature | -5~35°C |
| Warranty | 10 Years |
| Recommend Depth of Discharge | 90% |
| Battery Cell Certification | IEC62619, ENIEC 61000-6-1/2/3/4, UN38,3 |
