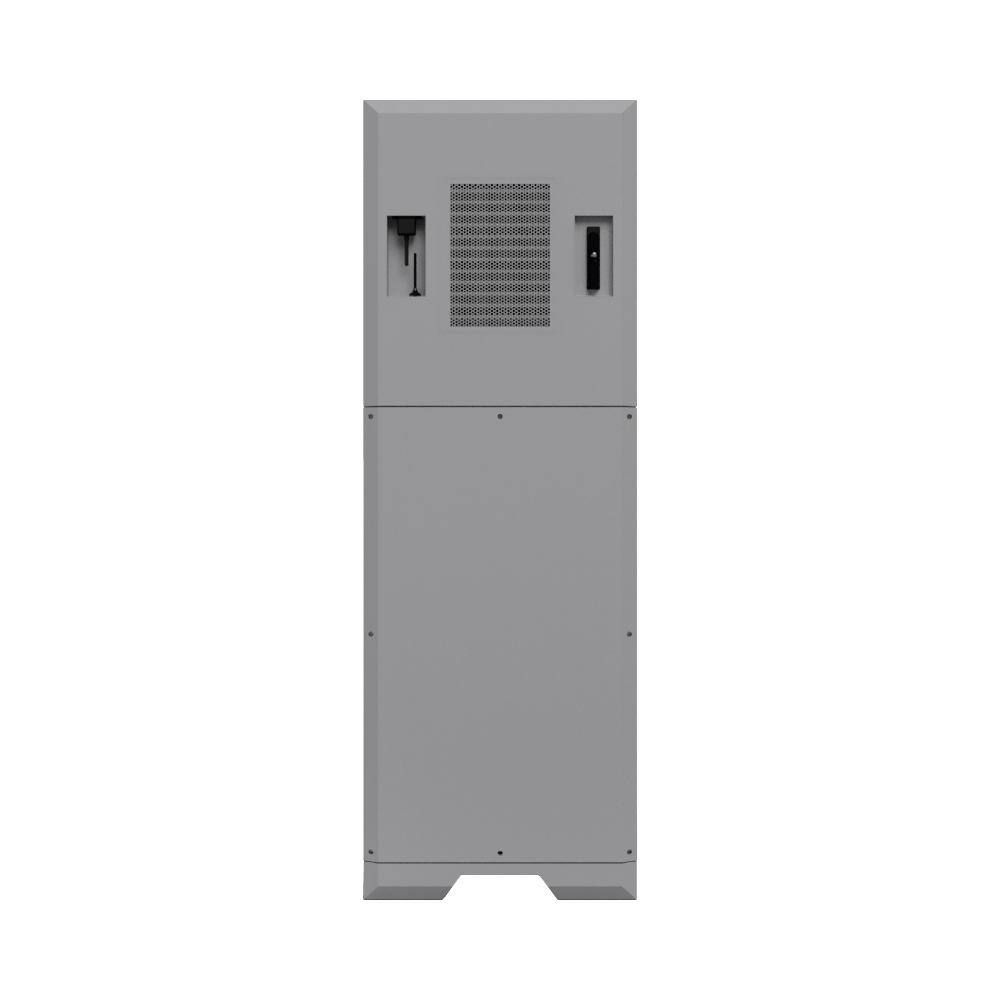

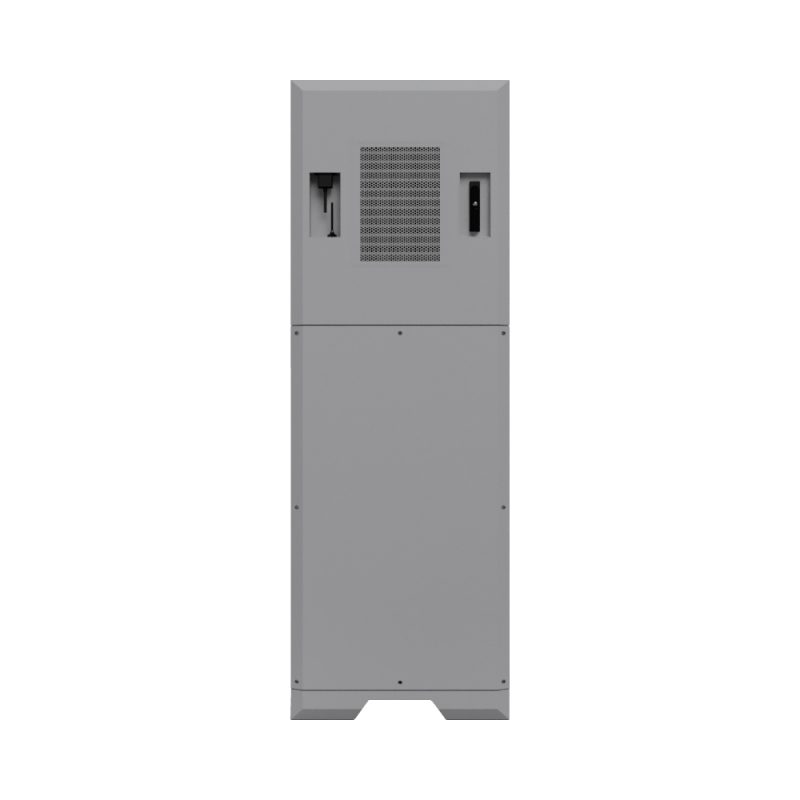

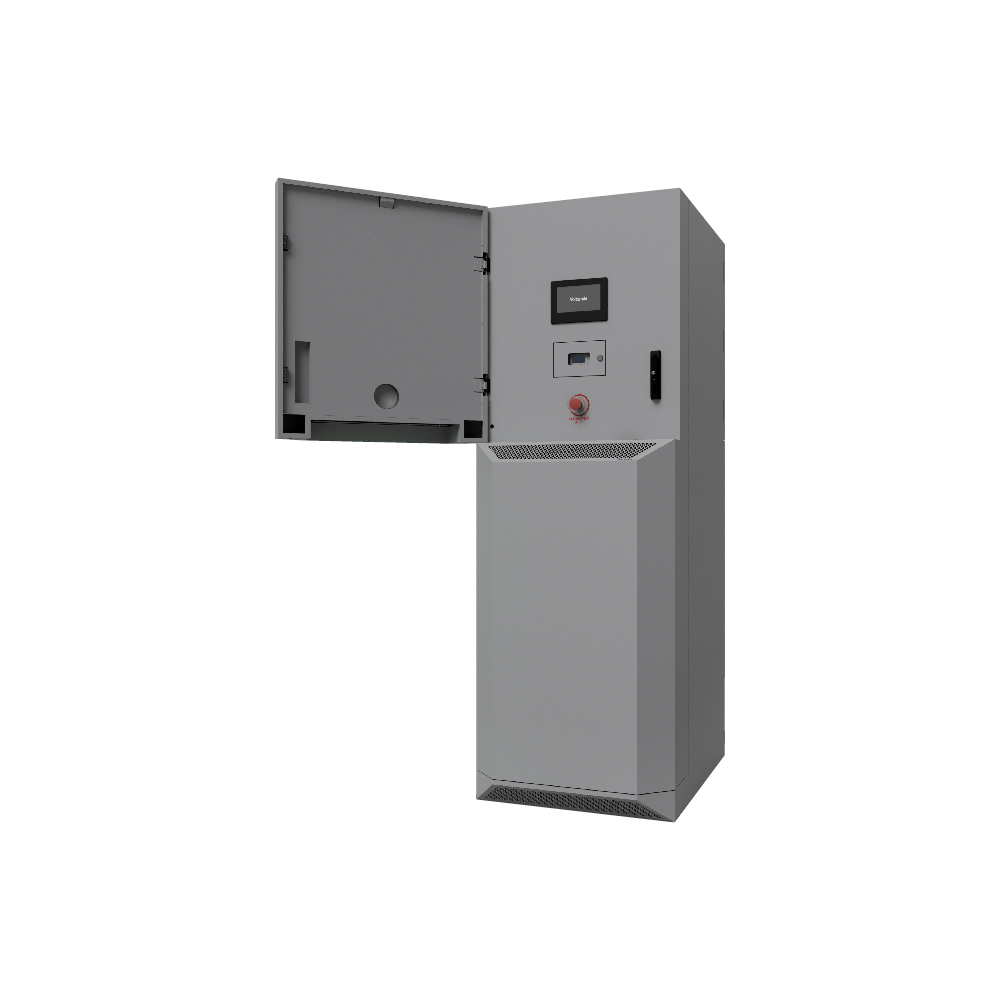

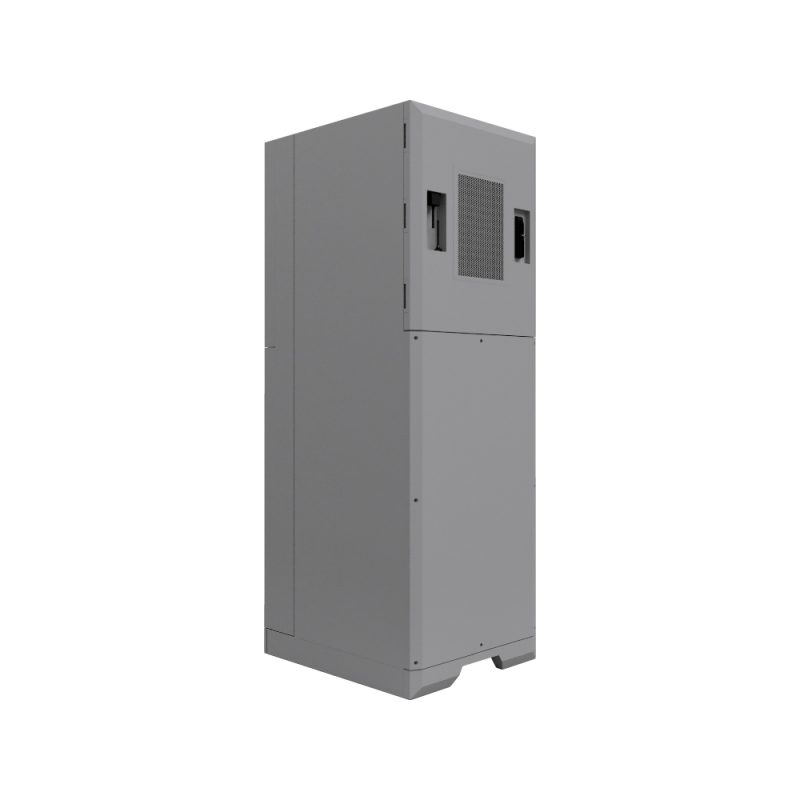

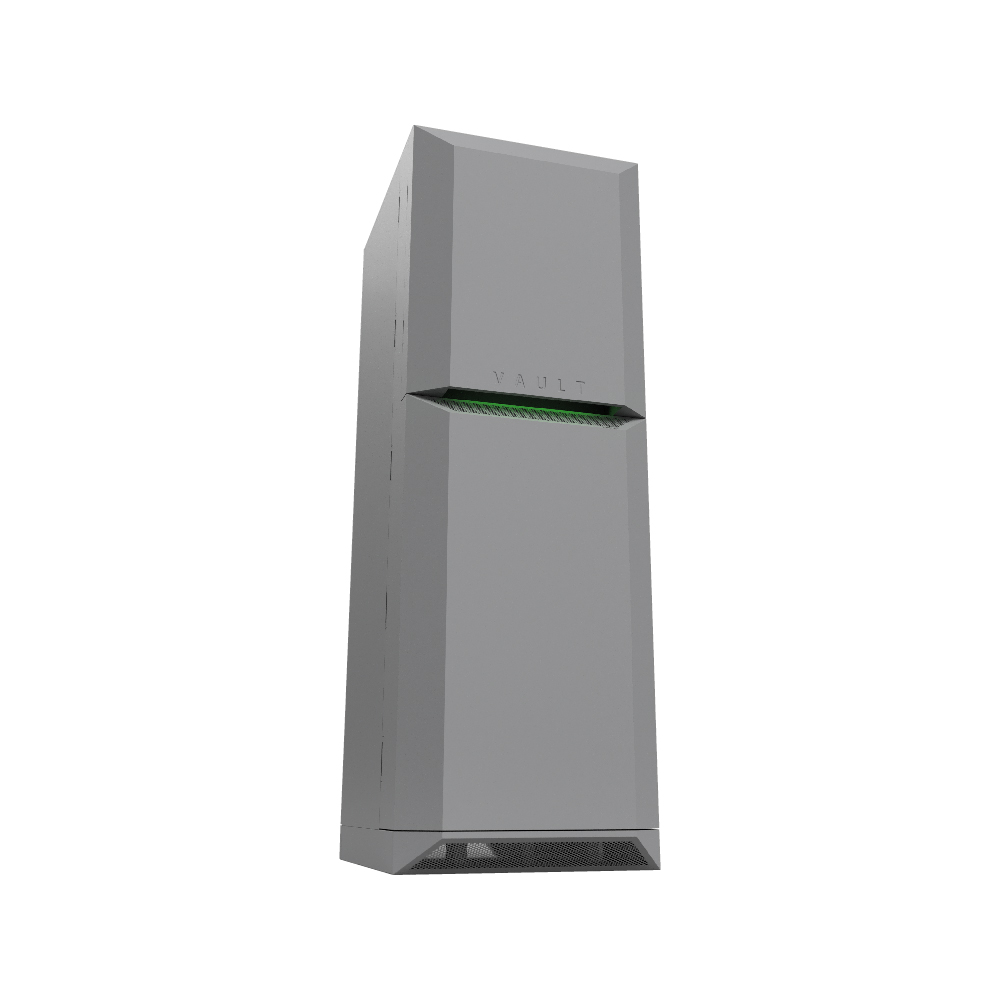

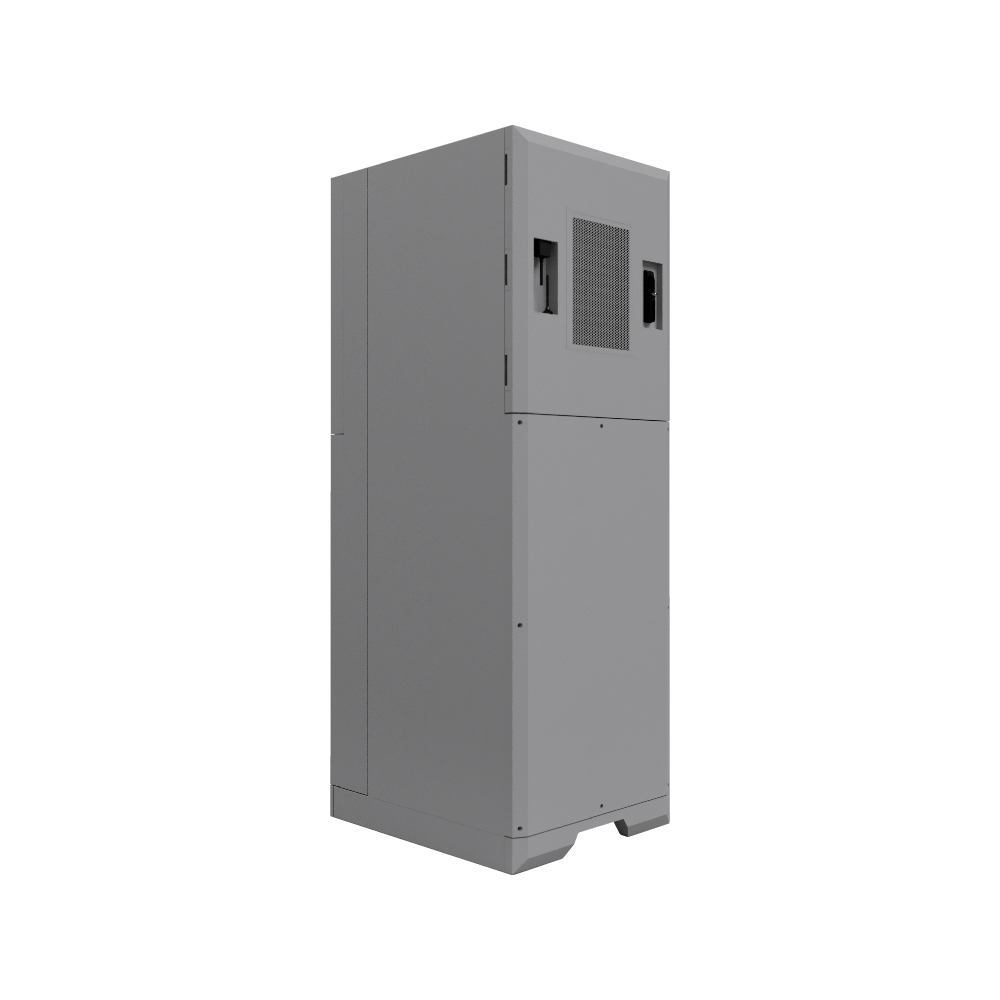

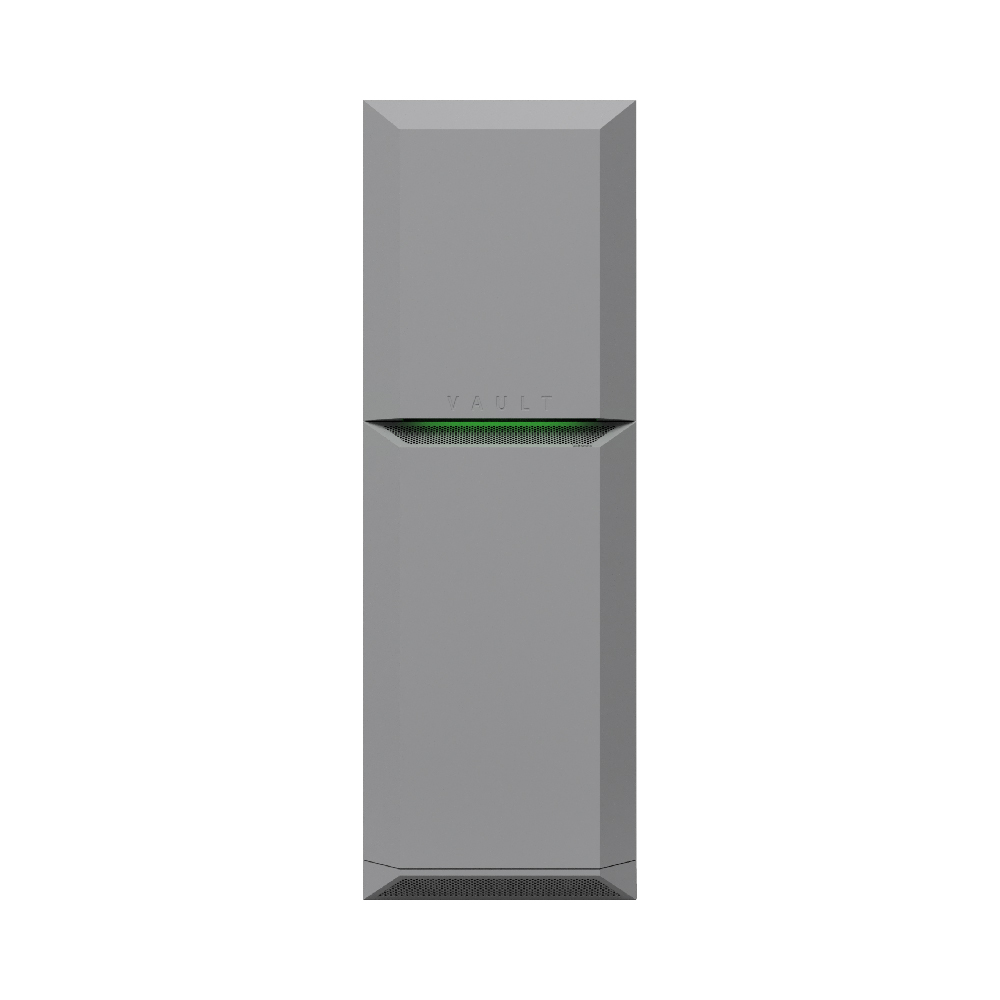

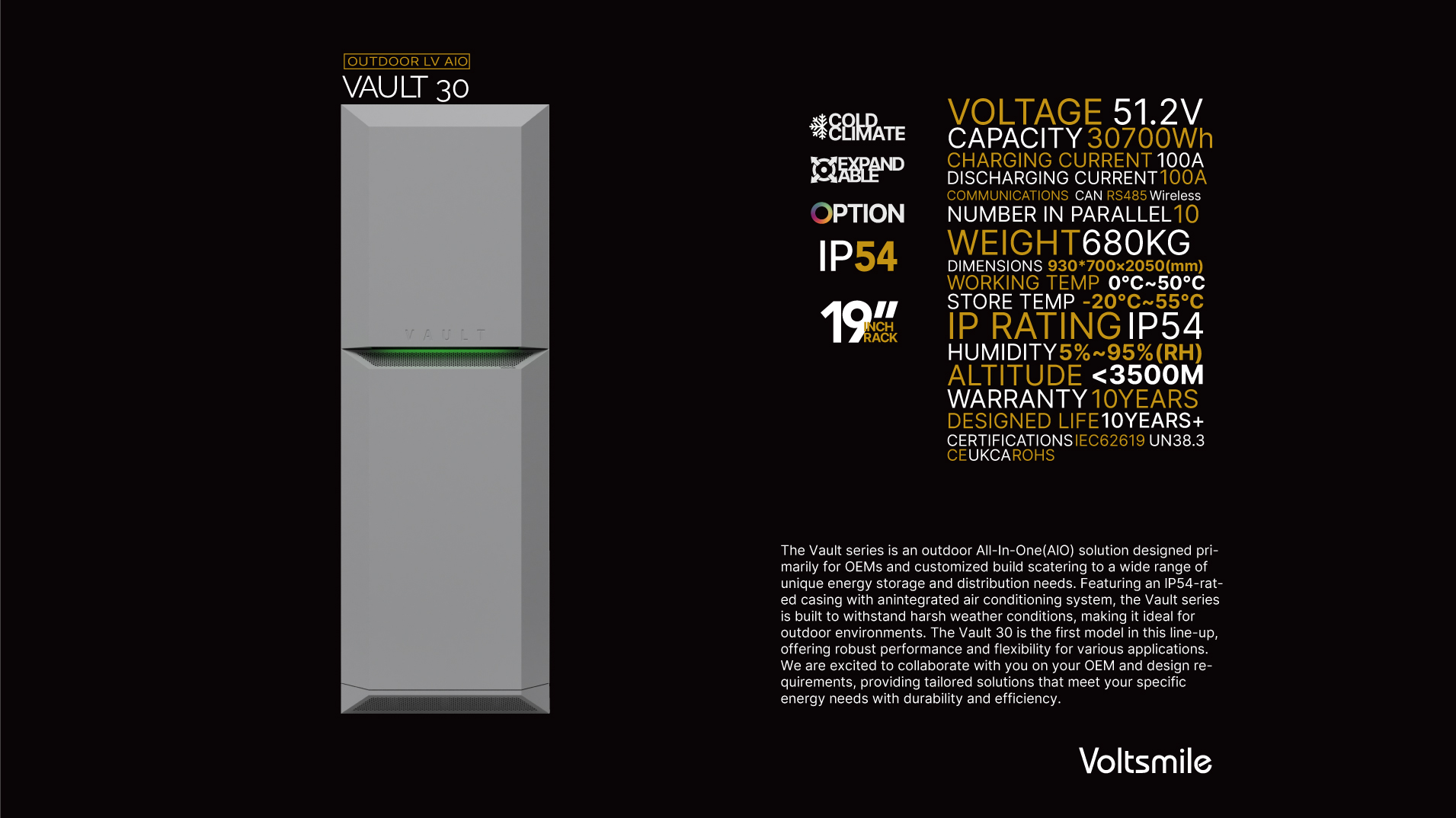

VAULT 30 AIO System 12kW 30kWh

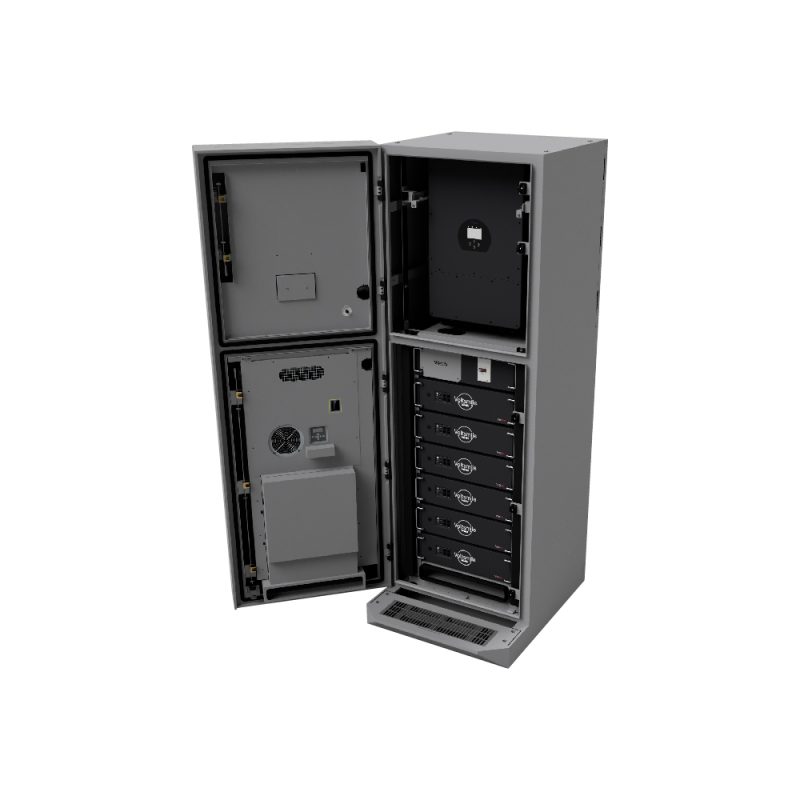

1. Advanced Integration: EMS, hybrid inverter, and BMS integration technology; RPC battery installation is plug and play, no additional wiring is needed.
2. Protection: IP54 dustproof & waterproof; Intelligent air conditioner for cooling.
3. Safety: Flammable gas, smoke, and temperature detection; Built-in aerosol fire suppression systems.
4. All-in-one: 3-phase 12kW & 30kWh all-in-one system.
| Capacity | 5.12kWh per battery, max 6 batteries |
|---|---|
| Nominal Voltage | 51.2V |
| Voltage Range | 43.2V-57.6V |
| Max. Charge/Discharge Current | 100A per module (Limited by the inverter power, the system max charge/discharge current is 240A) |
| Life Cycles | 6000+ |
| PV Max. DC Input Power | 15.6KW |
| PV Input Voltage | 550V (160V~800V) |
| PV Start-up Voltage | 160V |
| MPPT Range | 200V-650V |
| PV Input Current | 26A + 13A |
| Rated AC Input/Output Active Power | 12kVA |
| Rated AC Input/Output Current | 18.2/17.4A |
| Rated Grid Voltage | 380/400Vac (Three phase) |
| Rated Grid Voltage Range | -20%~15% |
| Rated Input/Output Grid Frequency/Range | 50Hz(47Hz~52Hz) or 60Hz(57Hz~62Hz) |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Cabinet Size | L700*W930*H2050mm |
| Weight(include 6 batteries and inverter) | 650kg |
| Altitude | <4000m |
| Cooling | Intelligent air conditioner |
| Communication with BMS | CAN/RS485 |
