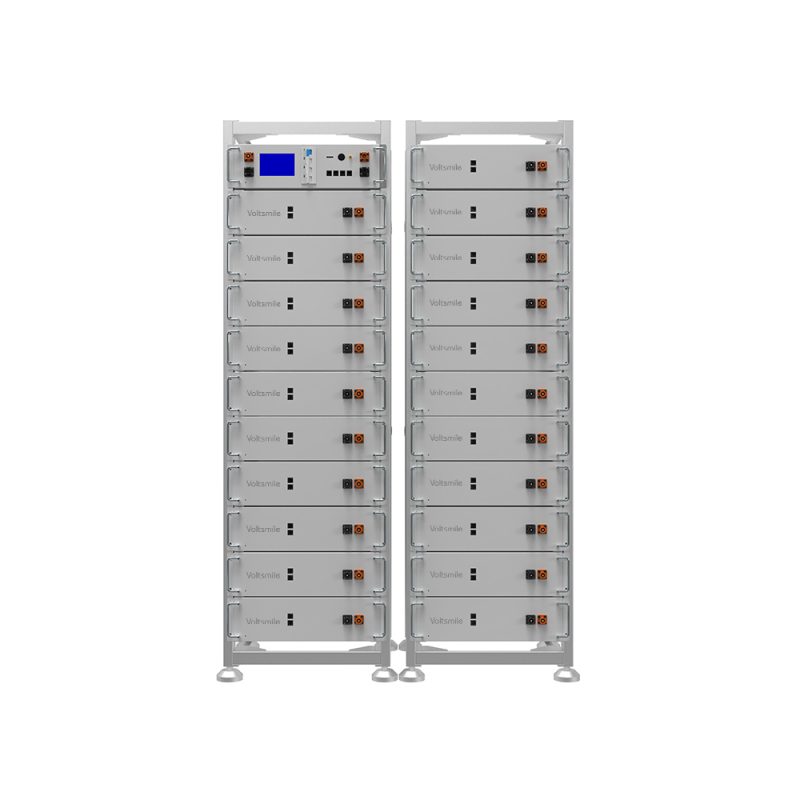

HV10 Series High-voItage Battery System
- Convenient installation: 19-inch embedded standard module, easy for installation and maintenance.
- Safe and reliable: Adopts LiFePO4 battery chemistry with safety, long cycle life, and low self-discharge.
- Flexible configuration: Battery capacity: 5.12 kWh, single cluster 87kWh, scalable to 348.1kWh.Multiple modules can be paralleled for capacity/power expansion.
- Wide Temperature Tolerance: -20°C to 55°C with excellent discharge and cycle performance
| Battery Type | LiFePO4 |
|---|---|
| Nominal Capacity | 20480Wh ~ 87040Wh |
| Max Output power | 20KW ~ 85KW |
| Nominal Voltage | 204.8V ~ 870.4V |
| Recommend Discharge Current | 50A |
| Max.Charge/Discharge Current | 100A |
| Peak Discharge Current | 120A@30s |
| Battery Module Capacity | 100Ah |
| Built-in Circuit Breaker | 125A |
| Charge Efficiency | 99% |
| Cycle Life | ≥6000 cycles |
| Communication | CAN2.0, RS485 |
| Status Indicator | HV BOX： LCD |
| Operating Temperature | Battery discharge：-20°C～60°C,battery charge：0°C～50°C |
| Storage Temperature | -5~35°C |
| Warranty | 10 Years |
| Recommend Depth of Discharge | 90% |
| Battery Cell Certification | IEC62619, ENIEC 61000-6-1/2/3/4, UN38,3 |
