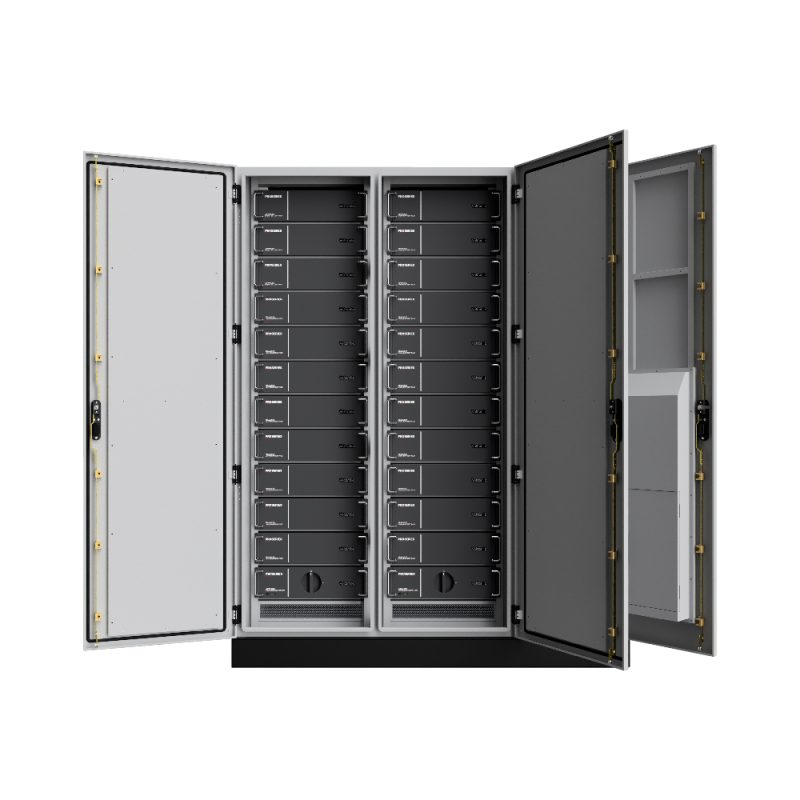

Raid11 50kW 110kWh AIO System
1. Advanced Integration: EMS, hybrid inverter, and BMS integration technology; RPC battery installation is plug and play, no additional wiring is needed.
2. Protection: IP54 dustproof & waterproof; Intelligent air conditioner for cooling.
3. Safety: Flammable gas, smoke, and temperature detection; Built-in aerosol fire suppression systems.
4. Scalability: Support system expansion to a maximum of 500kW & 1.1 MWh.
| Cell Chemistry | LiFePO4 |
|---|---|
| Kapacita | 5.12kWh per battery, max 112.64kWh |
| Jmenovité napětí | 51.2V per battery, max 563.2V |
| Max. Charge/Discharge Current | 80A |
| Certification | UN38.3 / IEC62619 / IEC62477 / CE |
| Life Cycles | 6000+ |
| Max. PV Arry Power | 100kW |
| Max. PV Input Power | 80kW |
| Max. PV Input Voltage | 1000V |
| PV Start-up Voltage | 180V |
| MPPT Range | 150V-850V |
| Rated PV Input Voltage | 600V |
| Max. Operating PV Input Current | 36A+36A+36A +36A |
| Rated AC Input/Output Active Power | 50kW |
| Max. AC Input/Output Apparent Power | 55kVA |
| Rated AC Input/Output Current | 75.8A/72.5A |
| Max. AC Input/Output Current | 83.4A/79.8A |
| Max. Continuous AC Passthrough(grid to load) | 200A |
| Peak Power(off-grid) | 1.5 times of rated power, 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range | 220/380V, 230/400V, 0.85Un-1.1Un |
| Rated Input/Output Grid-Frequency/Range | 50/45-55Hz, 60/55-65Hz |
| Grid Connection Form | 3L+N+PE |
| Total Current Harmonic Distortion THDi | <3%(of nominal power) |
| DC Injection Current | <0.5% In |
